Iconix FX15+ Weigh Indicator / Weigh Head

Description

Iconix FX15+ Weigh Indicator / Weigh Head – For Livestock Weighing or Produce Weighing

Pasturetec are very proud to have been appointed as the UK and Ireland distributor for Iconix products. Iconix provides a proven solution to many farmers and other industries who want a simple, effective and accurate weighing solution. With the back up, support and servicing completed in our own UK workshop, Iconix products are growing in popularity across the UK as a cost effective alternative to other brands for those who do not need the additional functionality that they provide. If you want simplicity, combined with accurate weighing, Iconix is for you. Two Indicator options are available and Two Load Bar sizes, to offer a complete, but simple solution.

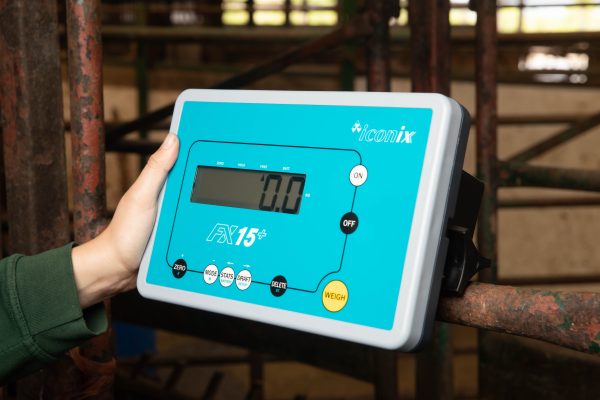

The Iconix FX15+ is the new generation livestock weighing system that follows on from the very popular FX15. It provides significantly upgraded features, while retaining excellent ease of use.

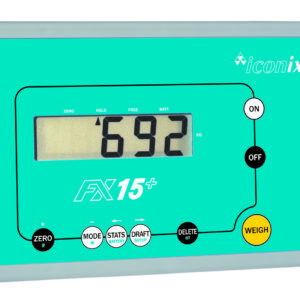

The FX15+ has a new larger LCD display with 5 digits 30mm high, for excellent visibility under all weighing conditions.

The MODE key allows the user to choose between HOLD (3 versions) for weighing livestock and FREE for static loads such as produce.

Simple one-step weighing: on pressing WEIGH, the animal is accurately weighed and the result locked on the display. A new weight record is added to memory and statistics are updated.

Automatically adapts the resolution and zero-tracking to suit the weight range in use. The FX15+ makes switching weigh jobs a breeze. No need to manually select different modes.

A DRAFT limit may be set to allow sorting of animals into high or low weight ranges. After weighing an animal, the display will show H (high) or L (low) alongside the weight.

Use the STATS key to simply scroll through statistics at any time during the weighing session:

• Number of animals
• Average weight
• Total weight
• Number in the high weight range
• Number in the low weight range



The FX15+ is fitted with an internal rechargeable battery that gives about 10 to 12 hours of portable weighing. For applications where external power is always available, a version with no internal battery may be ordered.

Bluetooth is now a standard feature. It allows connection to other suitably configured equipment, such as EID readers and smartphones. Talk to your EID reader supplier regarding compatibility with the FX15+.

Choose your system by mix and match. The FX15+ indicator is compatible with all Iconix loadbars.

The FX15+ is available in English and Spanish language versions, with German and French to follow.

Specifications:

• • Supply voltage = 11.5V to 19V DC (18.5V to charge battery)
  • Low battery indication = 11.6V DC
  • Accuracy = +/- 0.5% of displayed weight +/- 1 division
  • Temperature range = -5°C to +50°C
  • Dimensions = 280 x 186 x 90mm (excluding bracket)
  • Weight = 1.7kg (including bracket)
  • Auto ranging resolution. With a standard 2000kg loadbar set:

     0 –     20kg   0.1kg steps
   20 –     50kg   0.2kg steps
   50 –   200kg   0.5kg steps
 200 –   500kg      1kg steps
 500 – 2000kg      2kg steps
