Iconix FX1+ Weighing Indicator / Weigh Head

Description

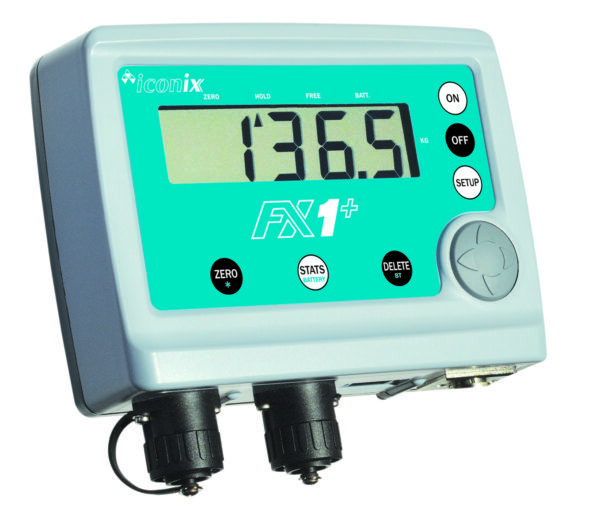

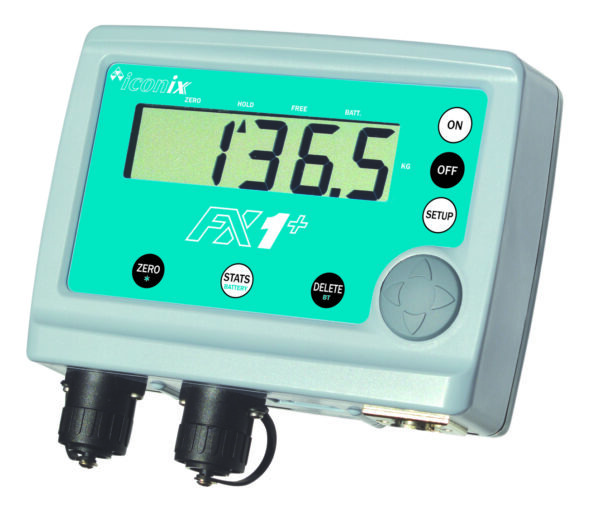

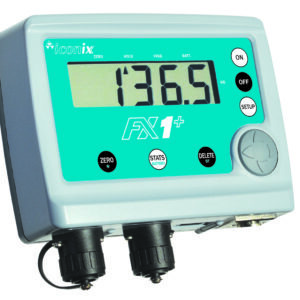

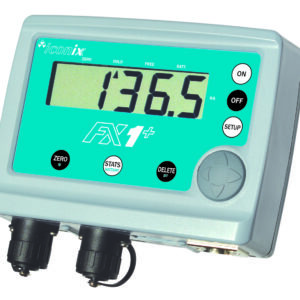

Iconix FX1+ Weighing Indicator

A range of specialised livestock weighing indicators are manufactured by Iconix. These products have a proven averaging algorithm that produces an accurate weight in the shortest time period, even when the animal is very restless. The features, ruggedness and ease of use are the result of experience over more than a decade and feedback from farmers around the world.

Pasturetec are very proud to have been appointed as the UK and Ireland distributor for Iconix products. Iconix provides a proven solution to many farmers and other industries who want a simple, effective and accurate weighing solution. With the back up, support and servicing completed in our own UK workshop, Iconix products are growing in popularity across the UK as a cost effective alternative to other brands for those who do not need the additional functionality that they provide. If you want simplicity, combined with accurate weighing, Iconix is for you.

The FX1+ is the updated entry level electronic weighing system from Iconix, with a completely re designed look.

Simplicity itself – just turn it on and “you’re weighing”.

There are two weighing modes:
    FREE for weighing static loads, such as produce.
    HOLD for livestock weighing – after a press of the WEIGH key, the accurately averaged weight of the animal is locked on the display until the next animal is weighed.

Features

• Auto zero at switch-on
• Intelligent zero-tracking. Dirt build-up while weighing is automatically zero-tracked out.
• Tough, weatherproof case rated to IP65
• Mounting bracket is included
• Powered by external 12V battery – battery lead supplied
• Optional AC adaptor for mains operation
• Low battery indicator
• Auto ‘low voltage’ shut down
• Weighs up to 2000kg with standard loadbars
• Available in English, Spanish and German language versions

Specifications

• • Supply voltage = 11.5V to 19V DC
  • Low battery indication = 11.4V DC
  • Automatic scale base selection
  • Accuracy: +/- 0.5% of displayed reading +/- 1 division  where 1 division = 0.2kg, 0.5kg etc depending on weight range
  • Temperature range = -5°C to +50°C
  • Auto ranging resolution. With standard loadbar set:

      0 –     20kg   0.1kg steps
    20 –     50kg   0.2kg steps
    50 –   200kg   0.5kg steps
  200 –   500kg      1kg steps
  500 – 2000kg      2kg steps

*External battery required to operate the Weigh Head.
