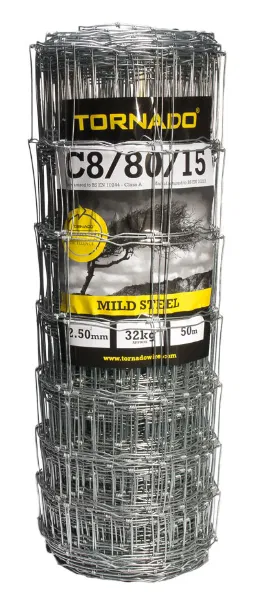

Tornado Hinge Joint C8/80/15 Mild Steel Livestock Netting 50m & 100M

Description

Tornado Hinge Joint C8/80/15 Mild Steel Livestock Netting 50m & 100M – Call for pricing and shipping – 01283 397290

*Please note this is a heavy item and will attract additional shipping charges – Call prior to order for shipping charge*

Please contact us for details 01283 387290

Common Applications

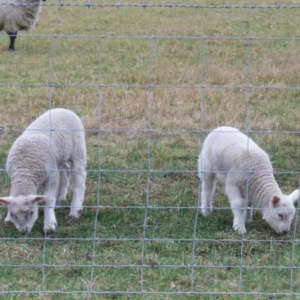

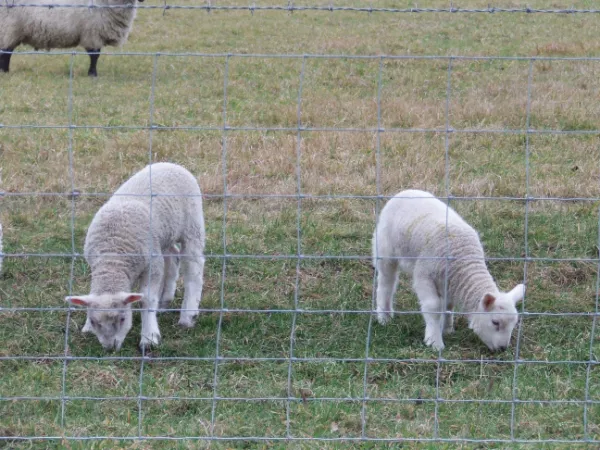

Sheep

Farmers know that effective grassland management requires strong and reliable fencing that will last for decades. Tornado’s range of livestock fencing has been engineered to offer maximum strength, security and longevity to protect your livestock, whilst offering exceptional value with minimal lifetime costs.

C8/80/15 is the most commonly used mild steel stock fence and features the traditional, cost-effective hinge joint which enables the netting to be turned out or cranked for use in special applications. Mild steel does not need to be strained as tightly as the high tensile variant and gradual turns can be made using intermediate posts. This is particularly useful if you need to make a lot of turns in your fence.

Specification

Number of line wires 8

Overall height 80cm

Distance between stay wires 15cm

Top & bottom line wire specification 3mm diameter – 695 – 850 N/mm2

Intermediate line wire specification 2.5mm diameter – 695 – 850 N/mm2

Vertical stay wire specification 2.5mm diameter – 695 – 850 N/mm2

Approx. weight 50m roll 32kg

Material composition heavily galvanised steel wire

British & European Standards

BS EN 10218

BS EN 10223

BS EN 10244

Contact us for further details on the range of options – 01283 387290
